BIRD 实验 3 RIP动态路由3台机器
简介
本文紧接着上一个实验，描述进行BIRD 3台机器的RIP动态路由实验。
目标

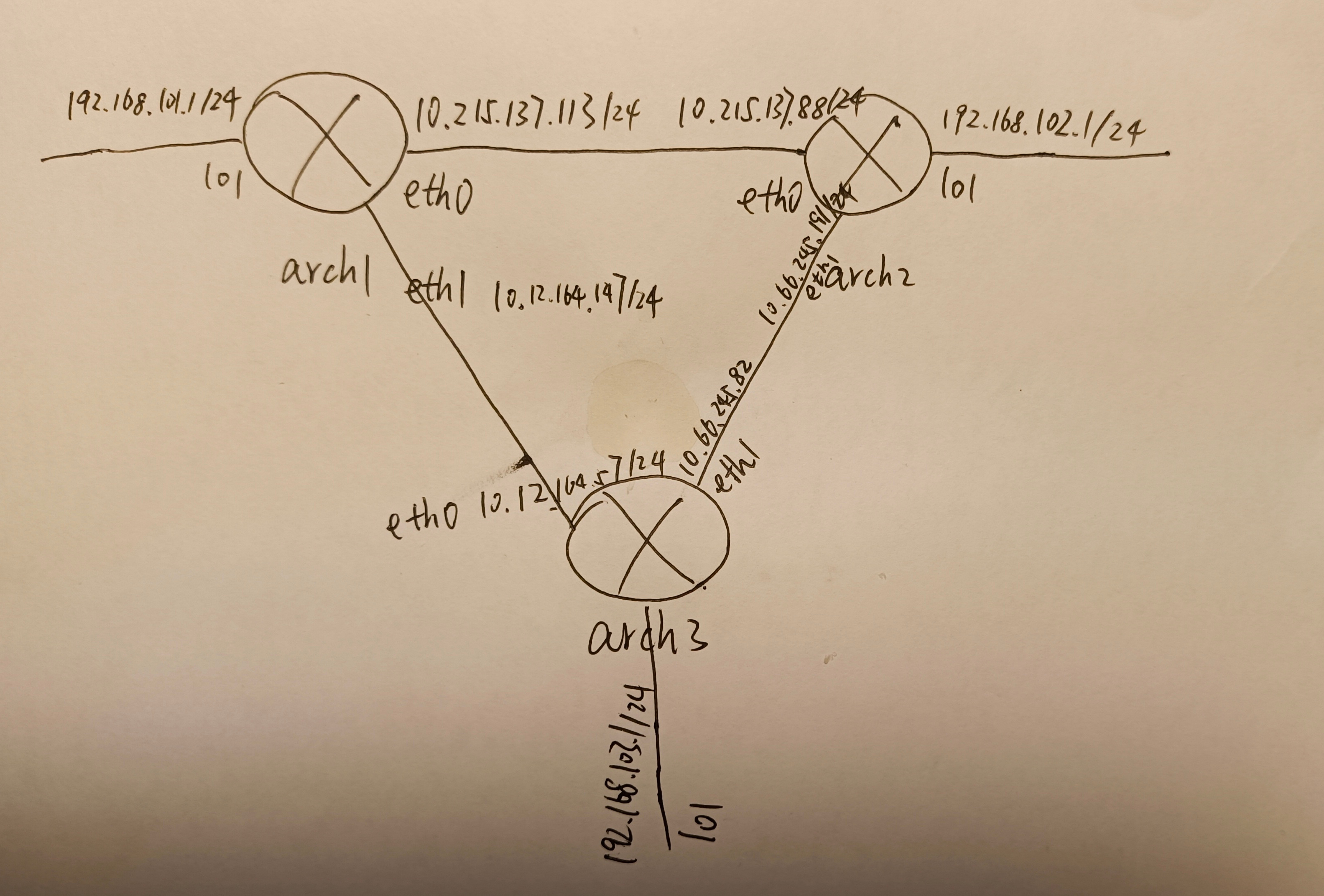

如图所示，这次三个路由器通过三个网桥直连,分别在lo1接口各挂一个子网，实验的目的是在一台路由器上能够ping通另一台路由器lo1接口上的子网。断开arch1和arch3之间的连接后，能自动切换到arch1-arch2-arch3的路由。
准备
参照实验2准备好arch1、arch2机、一个lxdbr0网桥。 参照实验2再添加一个arch3机。
再添加两个新网桥
lxc network create lxdbr1
lxc network create lxdbr2
看到新网桥如下：
lxc network list
+----------+----------+---------+-----------------+---------------------------+-------------+---------+---------+
| NAME | TYPE | MANAGED | IPV4 | IPV6 | DESCRIPTION | USED BY | STATE |
+----------+----------+---------+-----------------+---------------------------+-------------+---------+---------+
| enp3s0f0 | physical | NO | | | | 0 | |
+----------+----------+---------+-----------------+---------------------------+-------------+---------+---------+
| lxdbr0 | bridge | YES | 10.215.137.1/24 | fd42:62ab:9b76:b227::1/64 | | 3 | CREATED |
+----------+----------+---------+-----------------+---------------------------+-------------+---------+---------+
| lxdbr1 | bridge | YES | 10.12.164.1/24 | fd42:7d6a:5878:6514::1/64 | | 0 | CREATED |
+----------+----------+---------+-----------------+---------------------------+-------------+---------+---------+
| lxdbr2 | bridge | YES | 10.66.245.1/24 | fd42:1416:4db6:ca04::1/64 | | 0 | CREATED |
+----------+----------+---------+-----------------+---------------------------+-------------+---------+---------+
设置arch1、arch2机的第二个网卡
lxc config device add arch1 eth1 nic name=eth1 type=nic network=lxdbr1
lxc config device add arch2 eth1 nic name=eth1 type=nic network=lxdbr2
arch3机的这样设置
lxc config device add arch3 eth1 nic name=eth1 type=nic network=lxdbr2
lxc config device override arch3 eth0 name=eth0 network=lxdbr1 type=nic
还要为每台机器配置一下eth1网卡
新增 /etc/systemd/network/eth1.network
[Match]
Name=eth1
[Network]
DHCP=ipv4
配置好后三台机器设备配置长这个样子
$ lxc config device show arch1
eth1:
name: eth1
network: lxdbr1
type: nic
$ lxc config device show arch2
eth1:
name: eth1
network: lxdbr2
type: nic
$ lxc config device show arch3
eth0:
name: eth0
network: lxdbr1
type: nic
eth1:
name: eth1
nictype: bridged
parent: lxdbr2
type: nic
lxc list长这个样子
$ lxc list
+-------+---------+-----------------------+-----------------------------------------------+-----------+-----------+
| NAME | STATE | IPV4 | IPV6 | TYPE | SNAPSHOTS |
+-------+---------+-----------------------+-----------------------------------------------+-----------+-----------+
| arch1 | RUNNING | 192.168.101.1 (lo1) | fd42:7d6a:5878:6514:216:3eff:fea6:6269 (eth1) | CONTAINER | 0 |
| | | 10.215.137.113 (eth0) | fd42:62ab:9b76:b227:216:3eff:fe87:c55f (eth0) | | |
| | | 10.12.164.147 (eth1) | | | |
+-------+---------+-----------------------+-----------------------------------------------+-----------+-----------+
| arch2 | RUNNING | 192.168.102.1 (lo1) | fd42:62ab:9b76:b227:216:3eff:feed:52a9 (eth0) | CONTAINER | 0 |
| | | 10.66.245.191 (eth1) | fd42:1416:4db6:ca04:216:3eff:fe39:1507 (eth1) | | |
| | | 10.215.137.88 (eth0) | | | |
+-------+---------+-----------------------+-----------------------------------------------+-----------+-----------+
| arch3 | RUNNING | 192.168.103.1 (lo1) | fd42:7d6a:5878:6514:216:3eff:feaa:7aef (eth0) | CONTAINER | 0 |
| | | 10.66.245.82 (eth1) | fd42:1416:4db6:ca04:216:3eff:fecc:2dc6 (eth1) | | |
| | | 10.12.164.157 (eth0) | | | |
+-------+---------+-----------------------+-----------------------------------------------+-----------+-----------+
实验
三台机器的/etc/bird.conf和实验2相比，完全不用变
在arch1、arch2 的/etc/bird.conf进行入如下配置，实际就是打开 protocol rip的注释
protocol device {
}
protocol direct {
disabled; # Disable by default
ipv4; # Connect to default IPv4 table
ipv6; # ... and to default IPv6 table
}
protocol kernel {
ipv4 { # Connect protocol to IPv4 table by channel
export all; # Export to protocol. default is export none
};
}
protocol kernel {
ipv6 { export all; };
}
protocol static {
ipv4; # Again, IPv4 channel with default options
route 192.168.101.0/24 via 192.168.101.1;
}
protocol rip {
ipv4 {
# Export direct, static routes and ones from RIP itself
import all;
export where source ~ [ RTS_DEVICE, RTS_STATIC, RTS_RIP ];
};
interface "eth*" {
update time 10; # Default period is 30
timeout time 60; # Default timeout is 180
authentication cryptographic; # No authentication by default
password "hello" { algorithm hmac sha256; }; # Default is MD5
};
}
实验结果，在arch1上，正常情况下
# ip route
default via 10.215.137.1 dev eth0 proto dhcp src 10.215.137.113 metric 1024
default via 10.12.164.1 dev eth1 proto dhcp src 10.12.164.147 metric 1024
10.12.164.0/24 dev eth1 proto kernel scope link src 10.12.164.147 metric 1024
10.12.164.1 dev eth1 proto dhcp scope link src 10.12.164.147 metric 1024
10.215.137.0/24 dev eth0 proto kernel scope link src 10.215.137.113 metric 1024
10.215.137.1 dev eth0 proto dhcp scope link src 10.215.137.113 metric 1024
192.168.101.0/24 dev lo1 proto kernel scope link src 192.168.101.1
192.168.101.0/24 via 192.168.101.1 dev lo1 proto bird metric 32
192.168.102.0/24 via 10.215.137.88 dev eth0 proto bird metric 32
192.168.103.0/24 via 10.12.164.157 dev eth1 proto bird metric 32
# ping 192.168.102.1
PING 192.168.102.1 (192.168.102.1) 56(84) bytes of data.
64 bytes from 192.168.102.1: icmp_seq=1 ttl=64 time=0.064 ms
# ping 192.168.103.1
PING 192.168.103.1 (192.168.103.1) 56(84) bytes of data.
64 bytes from 192.168.103.1: icmp_seq=1 ttl=64 time=0.061 ms
如上，说明arch1和arch2、arch3都是直连的。
模拟arch1和arch3间断掉
# ip link set eth1 down
再次检查
# ip route
default via 10.215.137.1 dev eth0 proto dhcp src 10.215.137.113 metric 1024
10.215.137.0/24 dev eth0 proto kernel scope link src 10.215.137.113 metric 1024
10.215.137.1 dev eth0 proto dhcp scope link src 10.215.137.113 metric 1024
192.168.101.0/24 dev lo1 proto kernel scope link src 192.168.101.1
192.168.101.0/24 via 192.168.101.1 dev lo1 proto bird metric 32
192.168.102.0/24 via 10.215.137.88 dev eth0 proto bird metric 32
192.168.103.0/24 via 10.215.137.88 dev eth0 proto bird metric 32
# ping 192.168.102.1
PING 192.168.102.1 (192.168.102.1) 56(84) bytes of data.
64 bytes from 192.168.102.1: icmp_seq=1 ttl=64 time=0.057 ms
ping 192.168.103.1
PING 192.168.103.1 (192.168.103.1) 56(84) bytes of data.
64 bytes from 192.168.103.1: icmp_seq=1 ttl=63 time=0.099 ms
如上，网络还是通的，路由变成arch1-arch2-arch3了。ping arch3的lo1所在网段时，ttl也变成63了，也说明多了一跳。实验成功。
总结
没有遇到啥难点，很快就成功了。小心default via 10.215.137.1那条路由，注意lxd自己也是一个路由器。
结束
实验结束，最后删除虚拟机。
lxc delete -f arch1
lxc delete -f arch2
lxc delete -f arch3
下次把三台机器互联的动态路由协议改为OSPF，实验能否成功。
